Black mirror
The signature Frameless Clear + Black make-up: a deep, reflective black face.
Minimal sectional · Made in Doral, Florida
Dubai Frameless Make the glass the architecture.
An exterior glass face minimizes visible aluminum and turns the garage opening into one calm, continuous plane. Built to order for premium modern façades.
Exterior glass faceBlack mirror glassCustom color layoutsBuilt to the opening
Glass first. Structure second.
One continuous plane of glass.
Dubai Frameless is an overhead sectional garage door with an exterior glass face. Instead of framing each pane, the glass covers the structure, so the aluminum all but disappears and the door reads as a single, seamless surface.
Four horizontal sections are a common architectural layout, and where span and engineering allow, the door is built with no vertical center division. It is the cleanest face we make, designed for minimalist, high-end homes.
Reduced visible framing
An exterior glass face hides the aluminum structure from the street.
Four-panel architecture
Four horizontal sections, with no center division where the opening and engineering permit.
Custom color layout
Combine glass colors by section for banding and contrast.
Hardware sized to the door
Track, springs and operator are selected from the finished door weight.
Design expressions
Five ways to wear the glass.
Black mirror is the signature Dubai Frameless face. Add a contrasting band or mix glass colors by section to suit the façade.
Black mirror + White band
A single white section set into the black mirror face for a bold horizontal accent.
Diamond White + Black
High-contrast banding on a bright modern façade.
Bronze + Black
A warm reflective face against stone and wood palettes.
Bronze + Black mirror band
A warm bronze face with a single black mirror band for a quieter contrast.
Expressions are shown as design visualizations. Final glass tone and panel proportions are approved on a physical sample and shop drawing.
Made for your façade
Design your Dubai Frameless door.
Choose a layout and glass expression to preview the look, then send the configuration with your quote request.
Side by side
Dubai Framed or Dubai Frameless?
Both are custom overhead sectional doors built in Doral. The difference is how much of the structure you see.
| Comparison |  Dubai Framed |  Dubai Frameless |
|---|---|---|
| Look | A defined aluminum grid with a horizontal rhythm | A continuous glass face with minimal visible aluminum |
| Glass | Clear, tinted, frosted, laminated impact, Low-E | Mirror black, mirror white, grey, bronze, Low-E and frosted looks |
| Frame | Bronze, White, Black or exterior wood-grain | Framing largely hidden behind the glass |
| Layout | 1 to 4 panes per section | Single-width sections, or a center division where required |
| Wind and impact | Impact / HVHZ options; FL47950-R1 | Confirmed per project after engineering review |
| Best for | Homes and commercial buildings | Premium minimalist façades |
Look
Dubai Framed: A defined aluminum grid with a horizontal rhythm
Dubai Frameless: A continuous glass face with minimal visible aluminum
Glass
Dubai Framed: Clear, tinted, frosted, laminated impact, Low-E
Dubai Frameless: Mirror black, mirror white, grey, bronze, Low-E and frosted looks
Frame
Dubai Framed: Bronze, White, Black or exterior wood-grain
Dubai Frameless: Framing largely hidden behind the glass
Layout
Dubai Framed: 1 to 4 panes per section
Dubai Frameless: Single-width sections, or a center division where required
Wind and impact
Dubai Framed: Impact / HVHZ options; FL47950-R1
Dubai Frameless: Confirmed per project after engineering review
Best for
Dubai Framed: Homes and commercial buildings
Dubai Frameless: Premium minimalist façades
Specifications
Dubai Frameless at a glance.
Technical values are design inputs only. Approved drawings and the final bill of materials govern every order. Four-panel layouts apply when the opening dimensions and engineering permit.
- System
- Overhead sectional door with an exterior glass face
- Face
- Exterior glass with reduced visible framing
- Layout
- Four horizontal sections are common
- Center division
- None where span and engineering allow (openings up to 11′ wide); otherwise a vertical center division
- Glass looks
- Mirror black, mirror white, grey, bronze, Low-E and frosted
- Signature make-up
- Frameless Clear + Black (black mirror)
- Color expressions
- Black + White band, Diamond White + Black, Bronze + Black, Bronze + Black mirror band
- Design input
- 5.9 lb/ft²
- Hardware
- Track, springs and operator selected from the finished door weight
Real projects
Dubai Frameless gallery.
Three-car Dubai Frameless

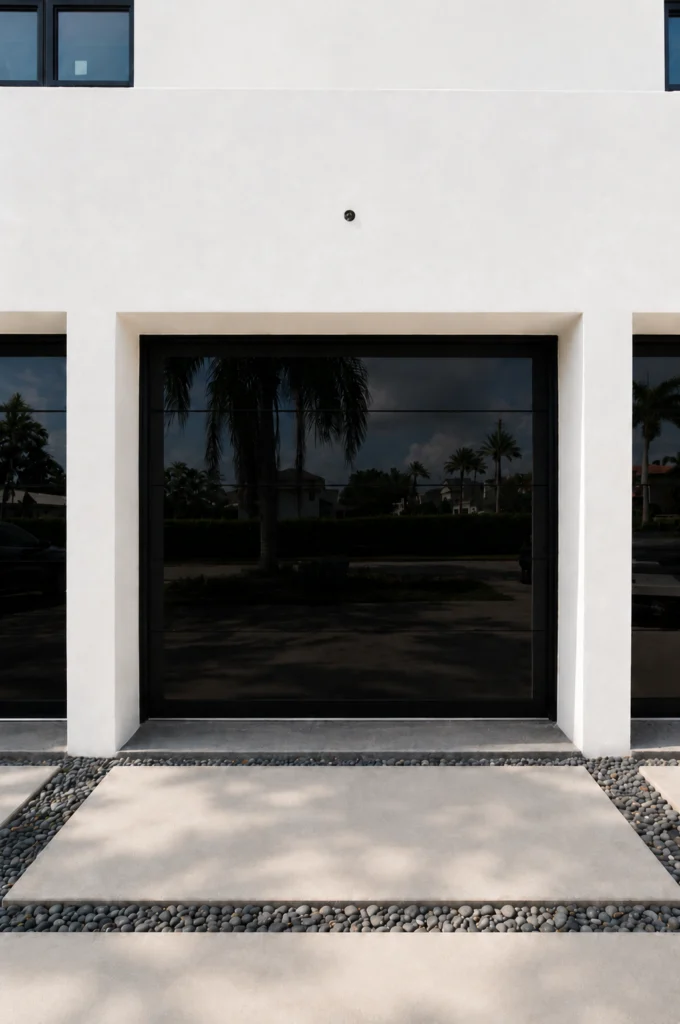

Single door, black mirror

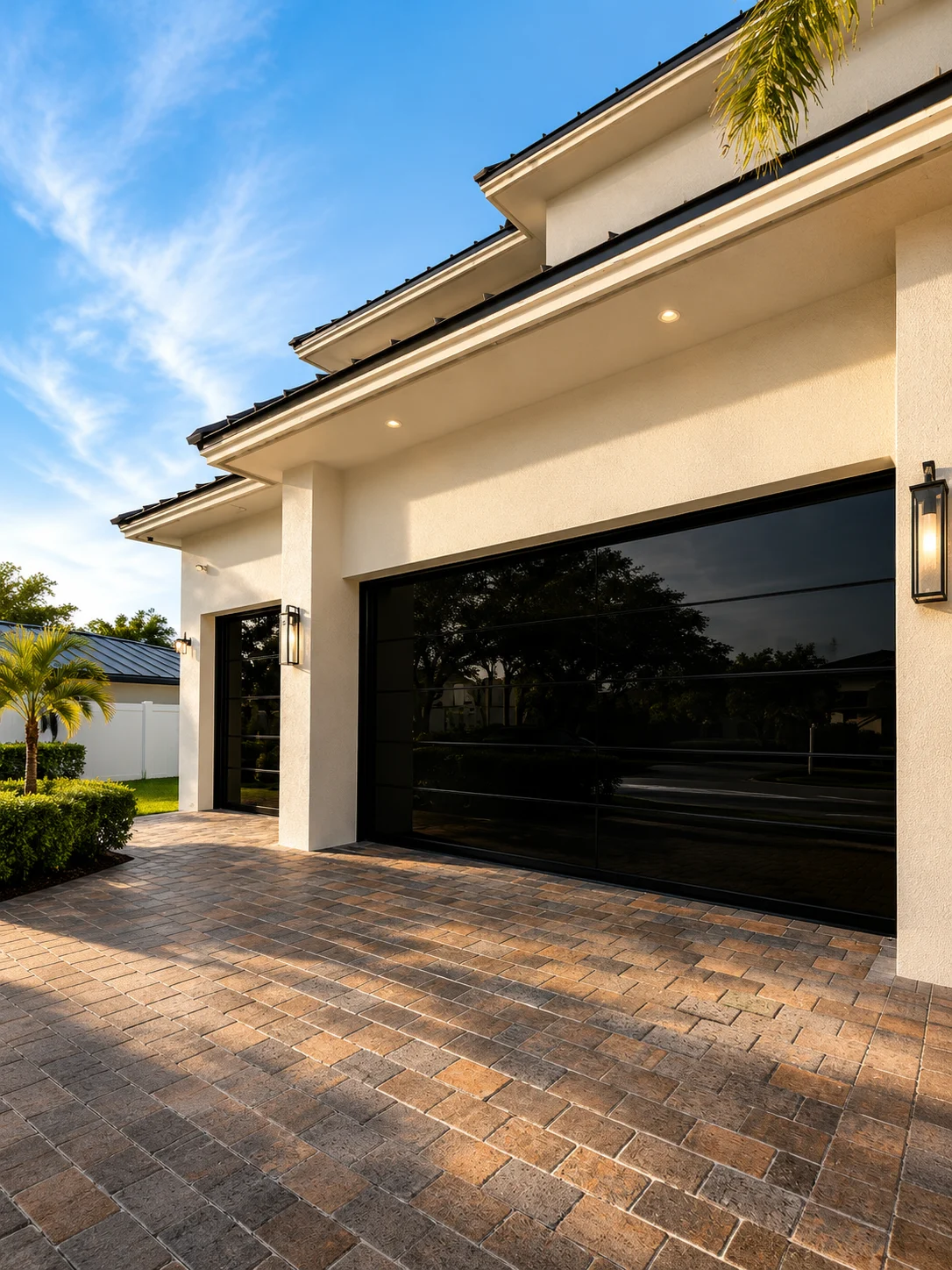

Black mirror on white stucco

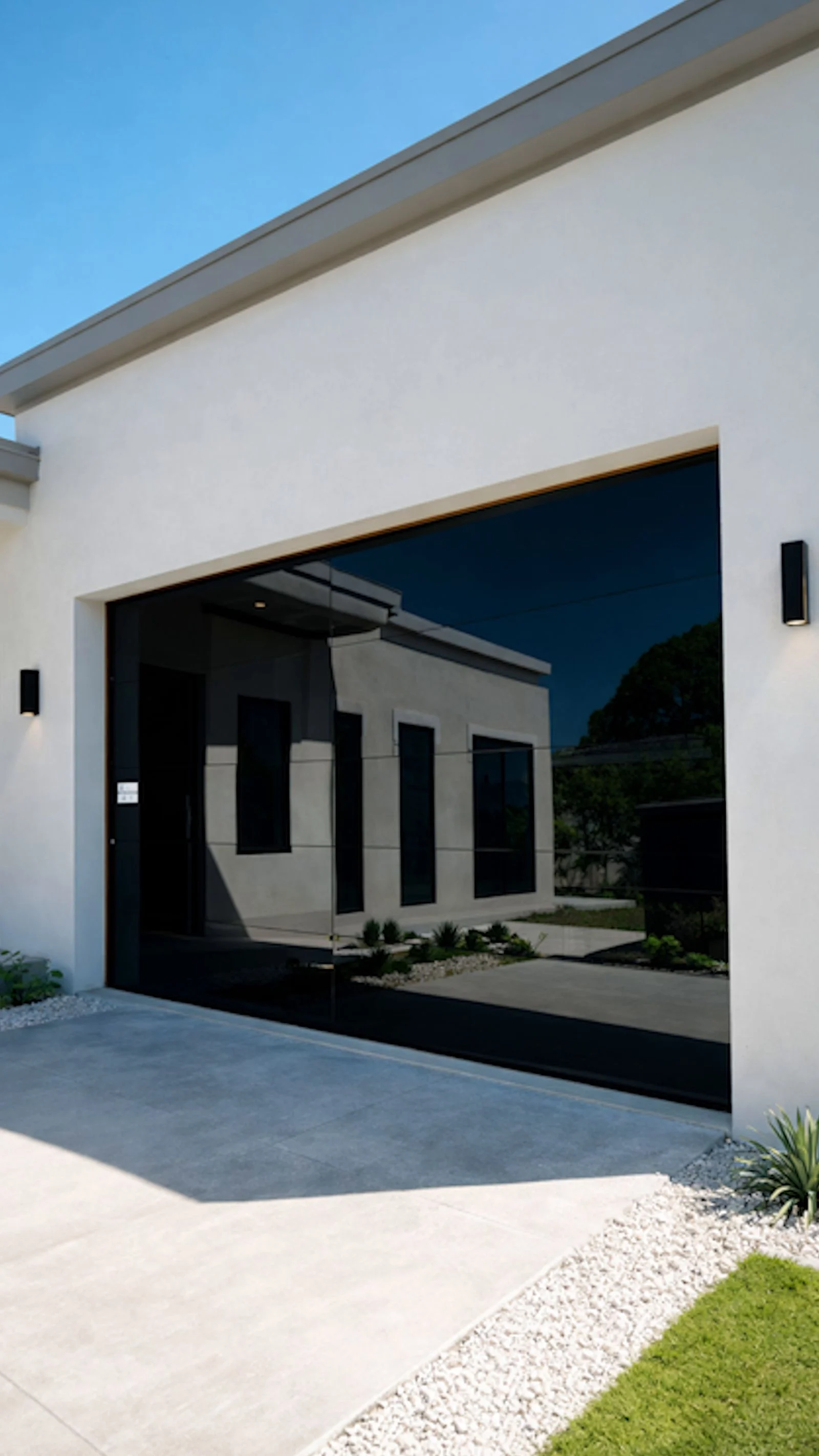

Modern white façade

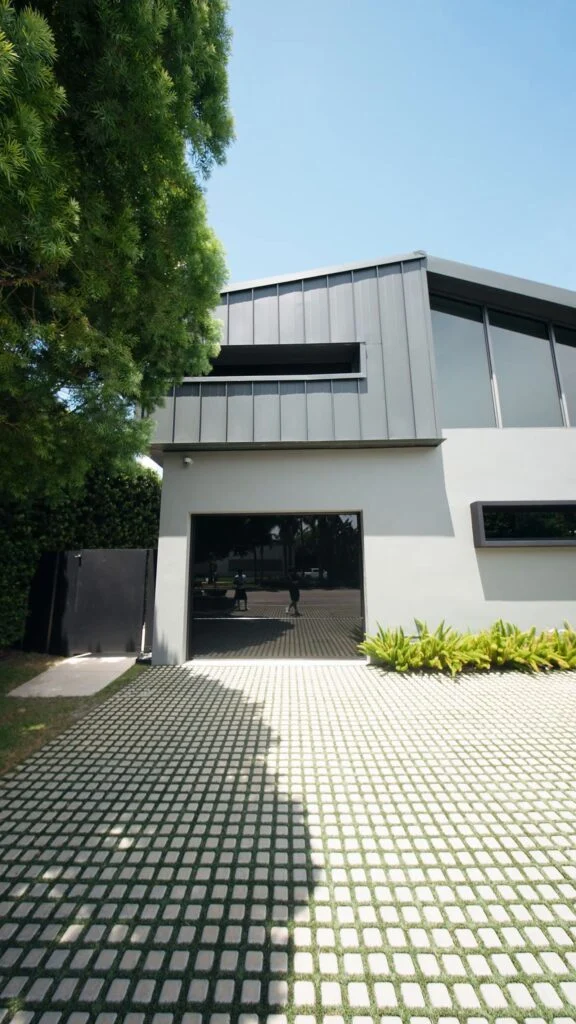

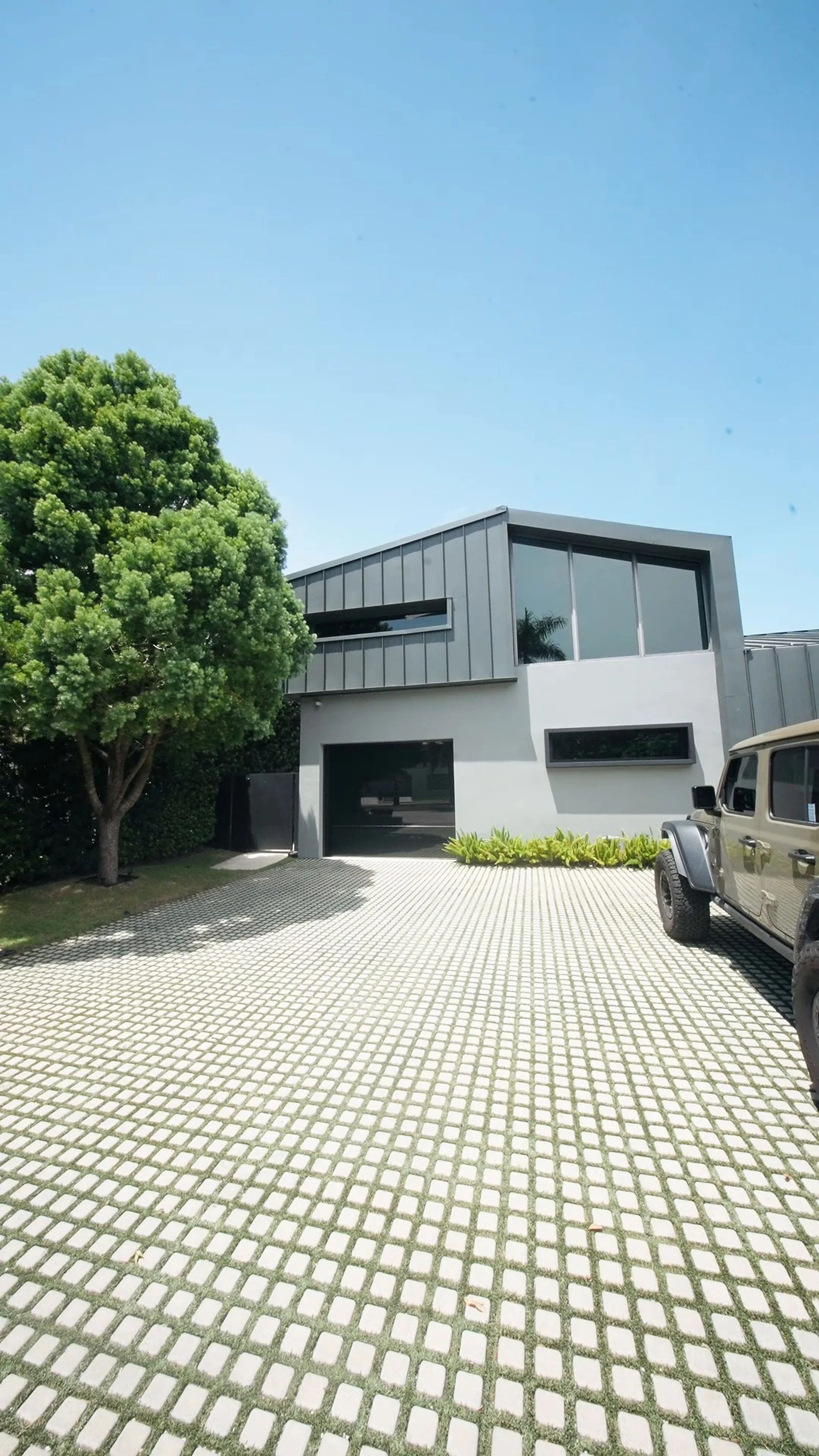

Grass-paver driveway

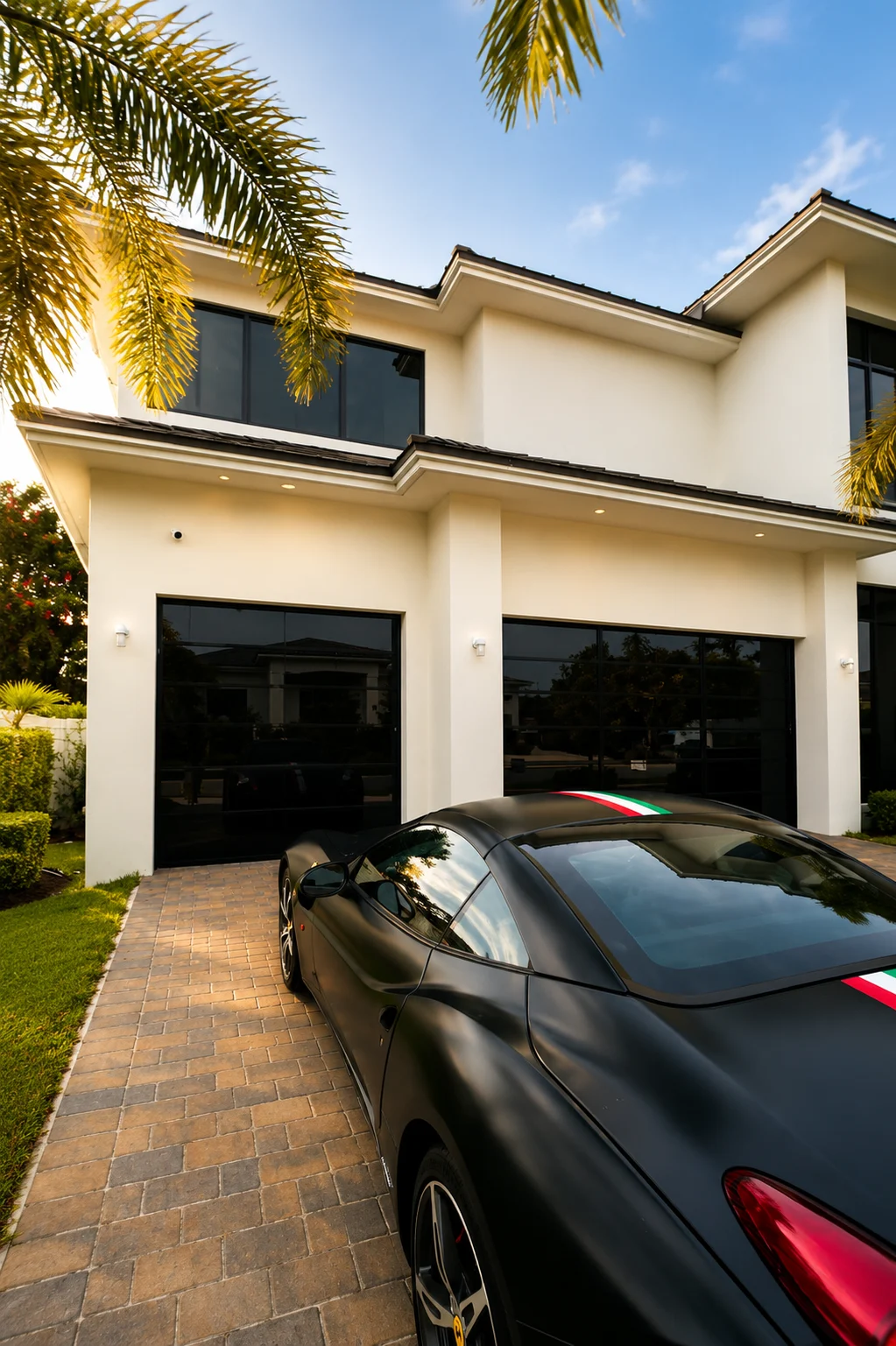

Collector's garage

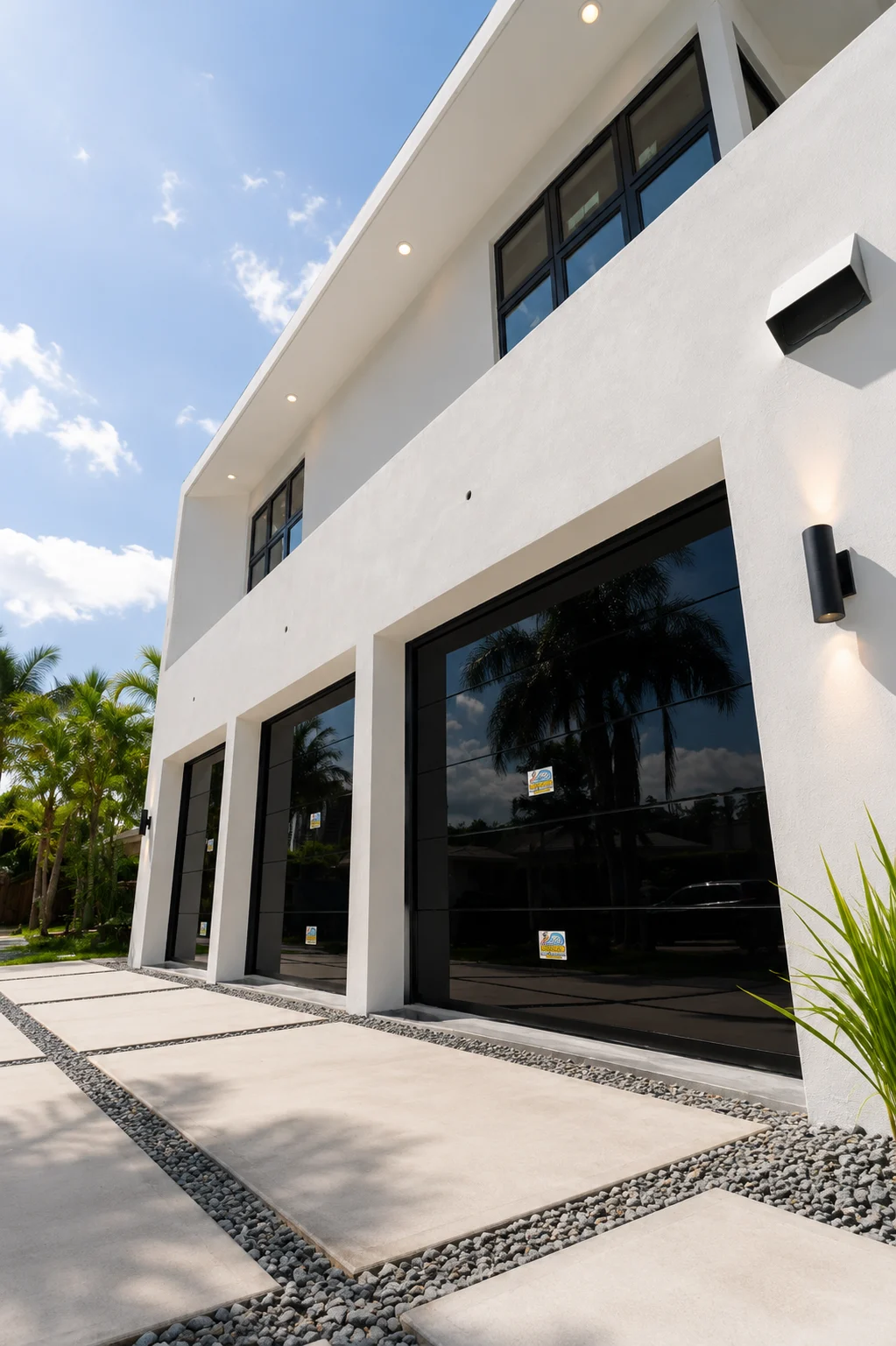

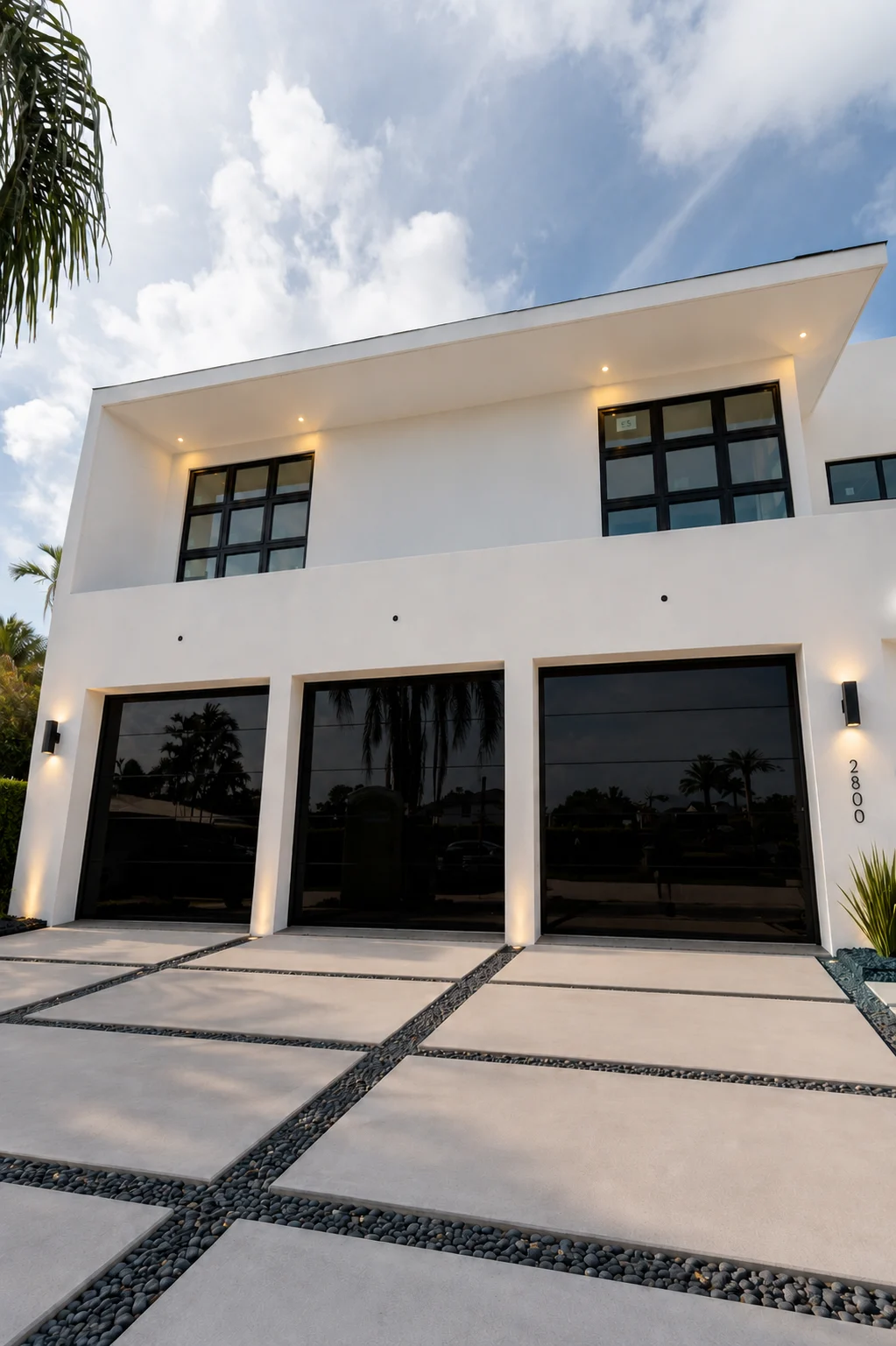

Triple bay

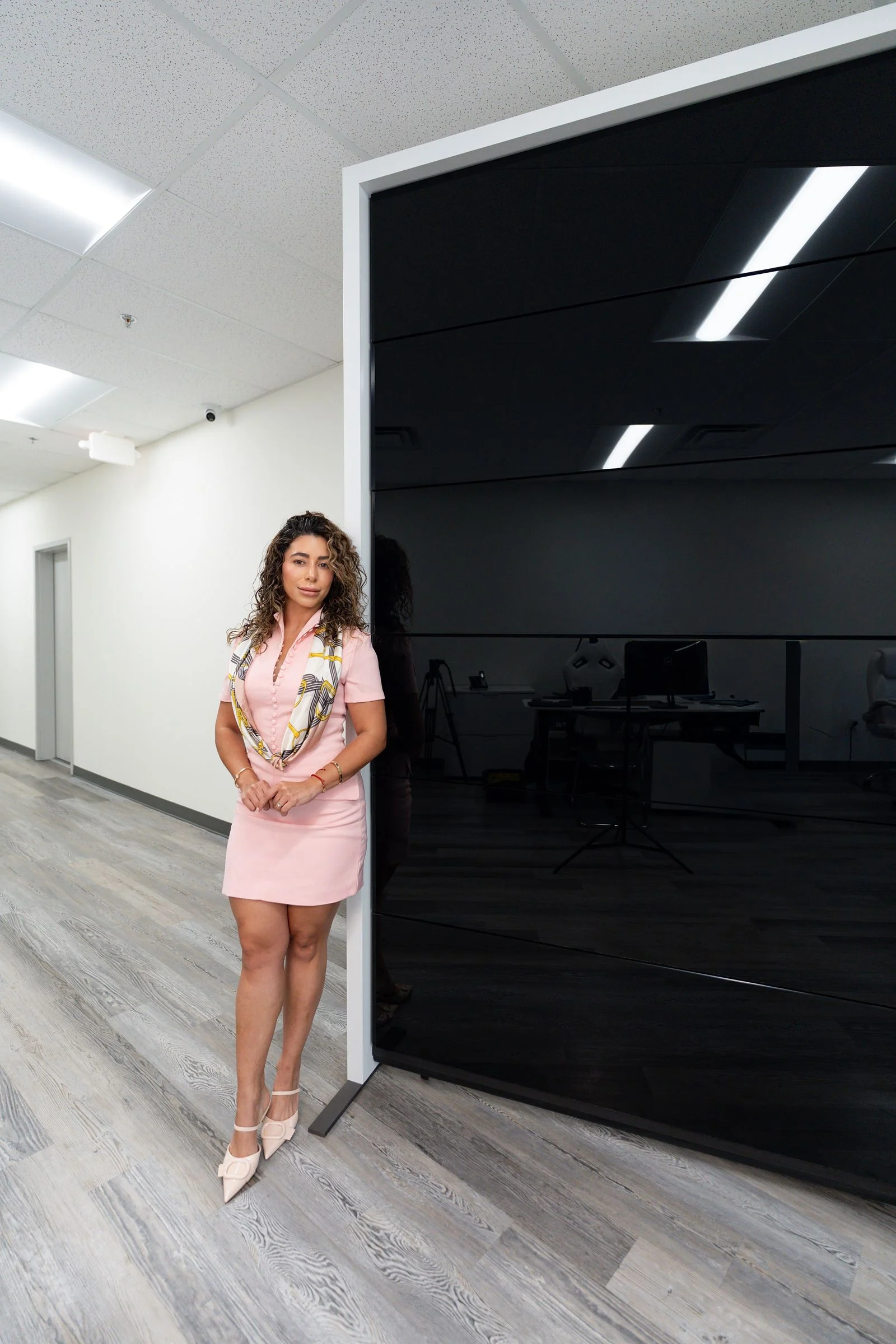

See the glass in person
FAQ
Dubai Frameless questions.
What is a frameless glass garage door?
A frameless glass garage door hides most of its aluminum structure behind an exterior glass face. Dubai Frameless still opens overhead like a sectional door, but from the street it reads as one continuous plane of glass instead of a grid of framed panes.
How is Dubai Frameless different from Dubai Framed?
Dubai Framed shows its aluminum frame and divides the glass into a defined grid. Dubai Frameless places the glass on the outside of the structure for a smoother, more minimal face. Framed offers more frame finishes; Frameless focuses on glass color and composition.
What glass colors are available?
Dubai Frameless is offered in mirror black, mirror white, grey, bronze, Low-E and frosted looks. The signature finish is black mirror, made with the Frameless Clear + Black make-up. Final glass tone is approved on a physical sample.
Can I mix glass colors on one door?
Yes. Custom color layouts are available, such as a single white band on a black mirror door, Diamond White + Black banding or Bronze + Black. Color placement and panel proportions are confirmed on the shop drawing.
Does Dubai Frameless have a center division?
Where span and engineering allow, it is built with no vertical center division for the cleanest face, typically on openings up to 11 feet wide. Wider openings or higher design pressures may call for a center division, which we confirm during engineering.
Is Dubai Frameless suitable for hurricane areas?
Wind pressure, impact requirements, glass make-up and hardware are finalized after we review your job site. Send us the address with your quote request and we will confirm what your location requires and which configuration fits.
Is a frameless glass door heavy?
Glass-faced doors weigh more than typical panel doors. We use a design input of 5.9 lb/ft² for Dubai Frameless doors and select the track, springs and operator from the finished door weight.
How much does a frameless glass garage door cost?
Price depends on the opening size, glass colors and layout, engineering requirements, hardware and operator. Every Dubai Frameless door is built to order, so we quote after reviewing your opening and job location.
All Glass Garage Doors
Explore the collection
Dubai Framed
Framed full-view sectional doors
Glass Sliding Gates
Aluminum and glass driveway gates
Essential Facility Doors
Fire stations and critical buildings
Built for your project
Tell us about the opening.
Send the opening size and the job location. Our engineering team reviews the requirements for that address and comes back with a proposal built for your door.
Final configuration depends on dimensions, location, glass make-up, wind requirements, hardware and available headroom.
